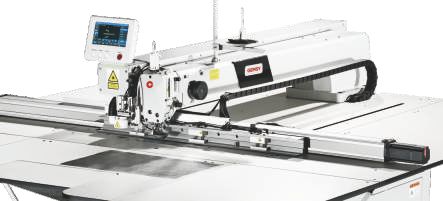

Automatic Intelligent Template Machine With 3-Screw Driver
Feeding three-screw structure, high precision, and strong rigidity; Servo motor feeding system: high efficiency and low noise. The intelligent middle presser foot is easy to adapt to the switching of high and low layers, and prevents down drilling and thread breakage. Intelligent electronic thread tensioner, the tension of forward and reverse sewing threads can be automatically changed, and the tension of thin and thick material threads can be automatically changed.
- New appearance, Science & Modern
- Dry- head, oil-free, without stains on materials
- 3200RPM Speed 3200PRM, intelligent efficient
- Servo-actuator drive performance is superior, with higher precision
- New auxiliary foot presser, convenient height adjustment
- Intelligent winder for hook winding quantity
- Automatic hook-changing

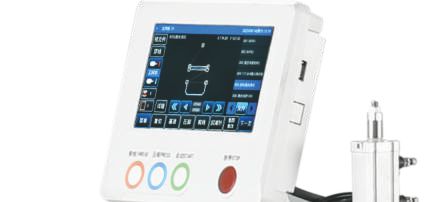

Large LCD touch screen with simple and easy operation
X-direction lead screw, Y-direction double lead screw

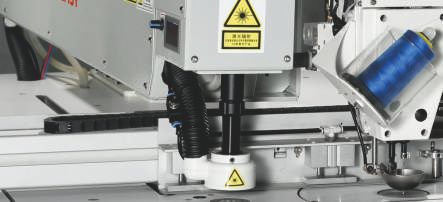

Optional laser cutting 130W
 |
 |
 |
 |
 |
 |
Input voltage | Output power |
|---|---|---|---|---|---|---|---|
| GEM 13090-LH | DPX5 7-12# | 0.1-12.7 (0.05mm) | 1300x900 | _ | 3200 (3.5mm Stitich length less than 3.5mm) | 220 ±44V | 550W |
| GEM 13085-LH-JG | DPX5 7-12# | 0.1-12.7 (0.05mm) | 1300x850 | ★ | 3200 (3.5mm Stitich length less than 3.5mm) | 220 ± 44V | 550W |
